Direct heat utilization of geothermal energy
Page
2

DOWNLOAD

WATCH ALL SLIDES

Slide 12

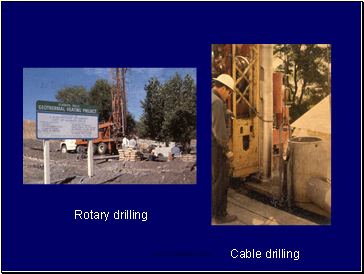

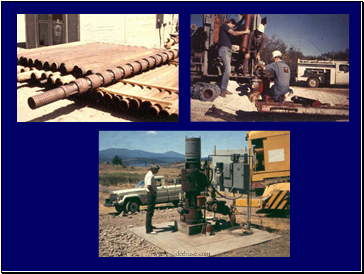

Rotary drilling

Rotary drilling

Cable drilling

Slide 13

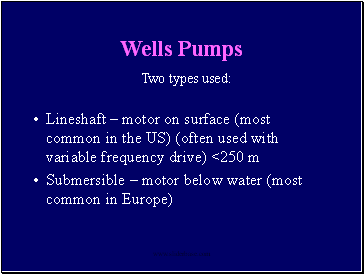

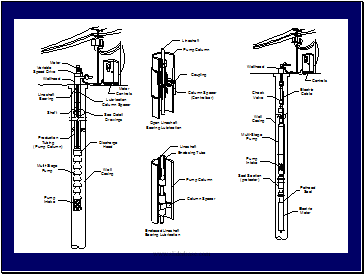

Wells Pumps

Wells Pumps

Lineshaft Ц motor on surface (most common in the US) (often used with variable frequency drive) <250 m

Submersible Ц motor below water (most common in Europe)

Two types used:

Slide 14

Wells Pumps

Slide 15

Wells Pumps

Slide 16

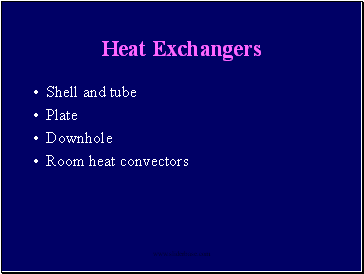

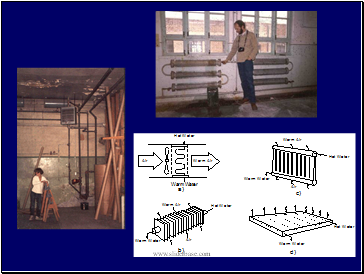

Heat Exchangers

Heat Exchangers

Shell and tube

Plate

Downhole

Room heat convectors

Slide 17

Plate heat exchanger

Plate heat exchanger

Slide 18

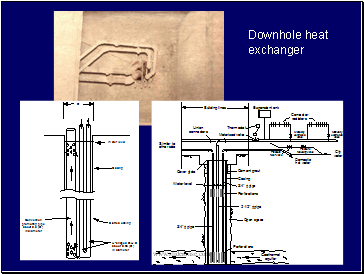

Downhole heat exchanger

Downhole heat exchanger

Slide 19

Heat Exchangers

Slide 20

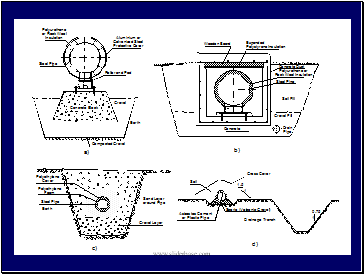

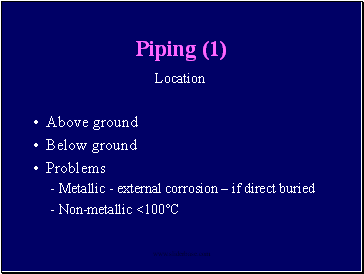

Piping (1)

Piping (1)

Above ground

Below ground

Problems

- Metallic - external corrosion Ц if direct buried

- Non-metallic <100∞C

Location

Slide 21

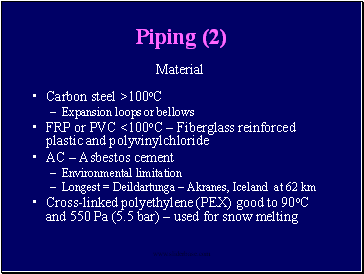

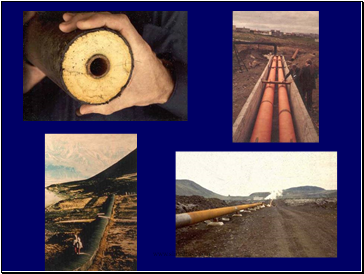

Piping (2)

Piping (2)

Carbon steel >100oC

Expansion loops or bellows

FRP or PVC <100oC Ц Fiberglass reinforced plastic and polyvinylchloride

AC Ц Asbestos cement

Environmental limitation

Longest = Deildartunga Ц Akranes, Iceland at 62 km

Cross-linked polyethylene (PEX) good to 90oC and 550 Pa (5.5 bar) Ц used for snow melting

Material

Slide 22

Heat Exchangers

Slide 23

Heat Exchangers

Slide 24

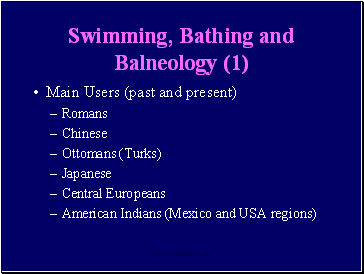

Swimming, Bathing and Balneology (1)

Swimming, Bathing and Balneology (1)

Main Users (past and present)

Romans

Chinese

Ottomans (Turks)

Japanese

Central Europeans

American Indians (Mexico and USA regions)

Slide 25

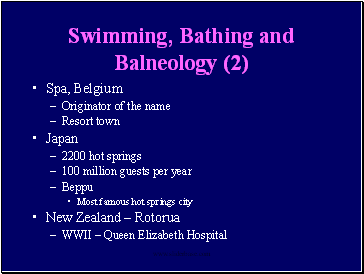

Swimming, Bathing and Balneology (2)

Swimming, Bathing and Balneology (2)

Spa, Belgium

Originator of the name

Resort town

Japan

2200 hot springs

100 million guests per year

Beppu

Most famous hot springs city

New Zealand Ц Rotorua

WWII Ц Queen Elizabeth Hospital

Slide 26

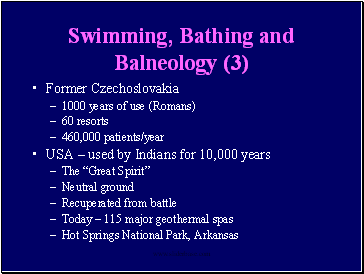

Swimming, Bathing and Balneology (3)

Swimming, Bathing and Balneology (3)

Former Czechoslovakia
