Direct heat utilization of geothermal energy
Page
4

DOWNLOAD

WATCH ALL SLIDES

Aquaculture

50% increase in growth rate

Catfish, shrimp, tilapia, eels, tropical fish

Slide 41

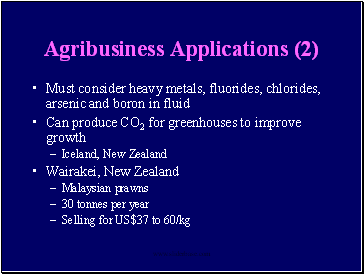

Agribusiness Applications (2)

Agribusiness Applications (2)

Must consider heavy metals, fluorides, chlorides, arsenic and boron in fluid

Can produce CO2 for greenhouses to improve growth

Iceland, New Zealand

Wairakei, New Zealand

Malaysian prawns

30 tonnes per year

Selling for US$37 to 60/kg

Slide 42

Direct heat utilization of geothermal energy

Slide 43

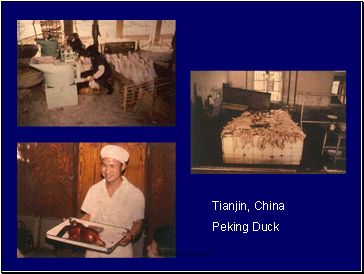

Tianjin, China

Tianjin, China

Peking Duck

Slide 44

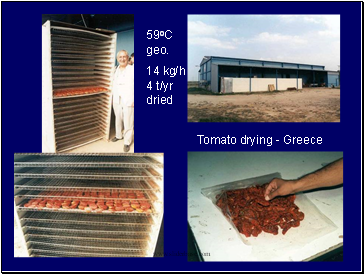

59oC geo.

59oC geo.

14 kg/h 4 t/yr dried

Tomato drying - Greece

Slide 45

Direct heat utilization of geothermal energy

Slide 46

Direct heat utilization of geothermal energy

Slide 47

Direct heat utilization of geothermal energy

Slide 48

Direct heat utilization of geothermal energy

Slide 49

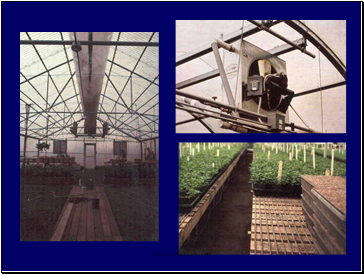

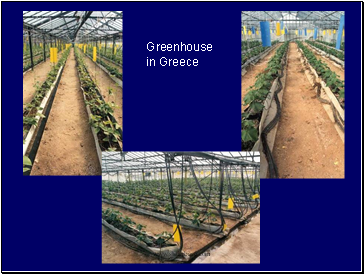

Greenhouse in Greece

Greenhouse in Greece

Slide 50

Direct heat utilization of geothermal energy

Slide 51

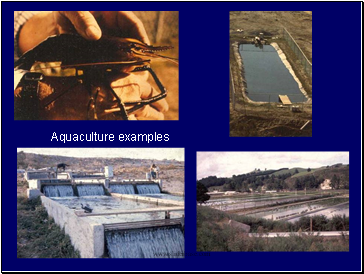

Aquaculture examples

Aquaculture examples

Slide 52

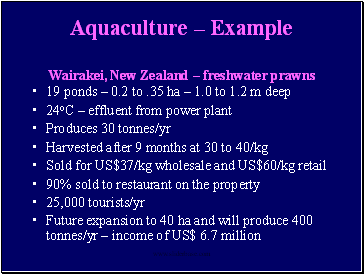

Aquaculture  Example Wairakei, New Zealand  freshwater prawns

Aquaculture Example Wairakei, New Zealand freshwater prawns

19 ponds 0.2 to .35 ha 1.0 to 1.2 m deep

24oC effluent from power plant

Produces 30 tonnes/yr

Harvested after 9 months at 30 to 40/kg

Sold for US$37/kg wholesale and US$60/kg retail

90% sold to restaurant on the property

25,000 tourists/yr

Future expansion to 40 ha and will produce 400 tonnes/yr income of US$ 6.7 million

Slide 53

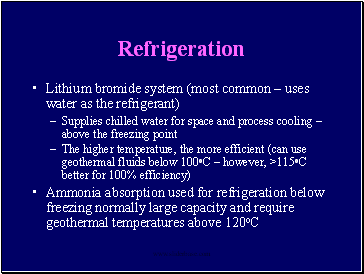

Refrigeration

Refrigeration

Lithium bromide system (most common uses water as the refrigerant)

Supplies chilled water for space and process cooling above the freezing point

The higher temperature, the more efficient (can use geothermal fluids below 100oC however, >115oC better for 100% efficiency)

Ammonia absorption used for refrigeration below freezing normally large capacity and require geothermal temperatures above 120oC

Slide 54

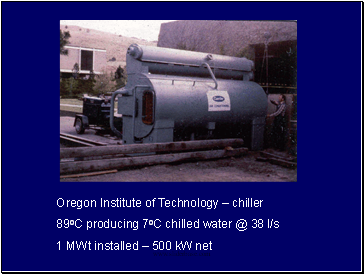

Oregon Institute of Technology  chiller

Oregon Institute of Technology chiller

89oC producing 7oC chilled water @ 38 l/s

1 MWt installed 500 kW net

Slide 55
