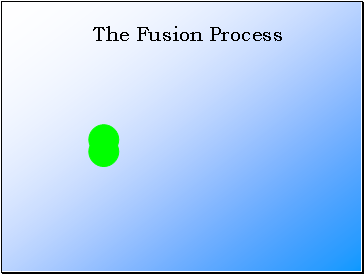

The Fusion Process

Slide 37

The Fusion Process

The Fusion Process

Slide 38

The Fusion Process

The Fusion Process

Slide 39

The Fusion Process

The Fusion Process

Slide 40

The Fusion Process

The Fusion Process

ENERGY

Slide 41

The Fusion Process

The Fusion Process

ENERGY

Slide 42

The Fusion Process

The Fusion Process

ENERGY

Slide 43

The Fusion Process

The Fusion Process

ENERGY

Slide 44

Energy from Fusion

Energy from Fusion

Slide 45

Energy from Fusion

Energy from Fusion

Calculate the following:

The mass difference.

The energy released per fusion.

Slide 46

Energy from Fusion

Energy from Fusion

The total mass before fusion (LHS of the equation):

The total mass after fission (RHS of the equation):

3.345 x 10-27 + 5.008 x 10-27 = 8.353 x 10-27 kg

6.647 x 10-27 + 1.675 x 10-27 = 8.322 x 10-27 kg

Slide 47

Energy from Fusion

Energy from Fusion

m = total mass before fission – total mass after fission

m = 8.353 x 10-27 – 8.322 x 10-27

m = 3.1 x 10-29 kg

Slide 48

Energy from Fusion

Energy from Fusion

E = mc2

m = 3.1 x 10-29 kg

c = 3 x 108 ms-1

E = E

E = 3.1 x 10-29 x (3 x 108)2

E = 2.79 x 10-12 J

The energy released per fusion is 2.79 x 10-12 J.
