Slide 1

Coasts and Reefs:

Coasts and Reefs:

Shallow marine processes

Slide 2

Coastal System

Coastal System

A beach is part of a coastal system, which includes several zones defined by their proximity to shore and the dominant processes that occur within them.

Slide 3

Offshore to Shoreface

Offshore to Shoreface

Offshore and shoreface portions of the coastal profile are permanently submerged in water, below the low tide mark.

An important feature that separates the offshore from shoreface zones is fairweather wave base the depth at which water is affected by wave movement under normal weather conditions.

Slide 4

Offshore zone

Offshore zone

The offshore zone lies below fairweather wave base and is therefore unaffected by normal waves.

The offshore zone normally only receives fine sediment that settles from suspension (but can receive coarser grained sediment during storms, when wave base is lowered).

Slide 5

Shoreface zone (lower part)

Shoreface zone (lower part)

The shoreface zone lies above fairweather wave base and is constantly affected by normal waves.

The gentle gradient of the lower shoreface results from the smoothing out of sediment associated with the back and forth movement of the waves.

Slide 6

Shoreface zone (upper part)

Shoreface zone (upper part)

Near the top of the shoreface zone, the base of a wave is slowed down due to friction with the seabed

The wave is oversteepened, and breaks, losing much of its energy.

Due to the loss of energy, some sediment can be deposited in sand bars.

Slide 7

Foreshore (The lower part of a beach)

Foreshore (The lower part of a beach)

Once a wave breaks, its water moves as a sheet upslope as swash, and falls back toward the sea as backwash. The narrow area in which this occurs is called the swash zone.

The location of swash zone shifts due to the rising and falling of the water level, associated with tides.

The area affected by the swash zone on a daily basis is called the foreshore (between low and high tide marks)

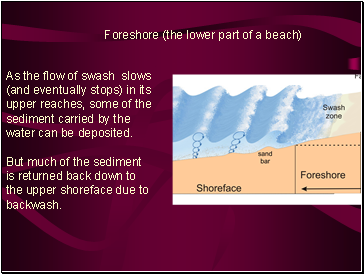

Slide 8

Foreshore (the lower part of a beach)

Foreshore (the lower part of a beach)

As the flow of swash slows (and eventually stops) in its upper reaches, some of the sediment carried by the water can be deposited.

But much of the sediment is returned back down to the upper shoreface due to backwash.

Slide 9

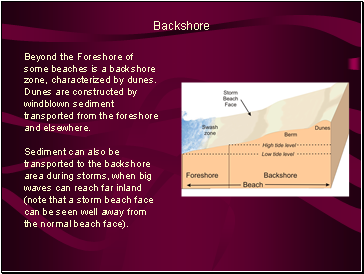

Backshore

Backshore
