Slide 1

Diverse Forms, Common Challenges

Diverse Forms, Common Challenges

Anatomy is the study of the biological form of an organism.

Physiology is the study of the biological functions an organism performs.

The comparative study of animals reveals that form and function are closely correlated.

Slide 2

How does a jackrabbit keep from overheating?

How does a jackrabbit keep from overheating?

Slide 3

Animal form and function are correlated at all levels of organization

Animal form and function are correlated at all levels of organization

Size and shape affect the way an animal interacts with its environment.

Many different animal body plans have evolved and are determined by the genome.

Slide 4

Physical Constraints on Animal Size and Shape

Physical Constraints on Animal Size and Shape

The ability to perform certain actions depends on an animals shape, size, and environment.

Evolutionary convergence reflects different species adaptations to a similar environmental challenge.

Physical laws impose constraints on animal size and shape.

Slide 5

Convergent evolution in fast swimmers

Convergent evolution in fast swimmers

(a) Tuna

(b) Penguin

(c) Seal

Slide 6

Exchange with the Environment

Exchange with the Environment

An animals size and shape directly affect how it exchanges energy and materials with its surroundings.

Exchange occurs as substances dissolved in the aqueous medium diffuse and are transported across the cells plasma membranes.

A single-celled protist living in water has a sufficient surface area of plasma membrane to service its entire volume of cytoplasm.

Slide 7

Contact with the environment

Contact with the environment

Exchange

0.15 mm

(a) Single cell

1.5 mm

(b) Two layers of cells

Exchange

Exchange

Mouth

Gastrovascular

cavity

Slide 8

Multicellular organisms with a sac body plan have body walls that are only two cells thick, facilitating diffusion of materials.

Multicellular organisms with a sac body plan have body walls that are only two cells thick, facilitating diffusion of materials.

More complex organisms have highly folded internal surfaces for exchanging materials.

Slide 9

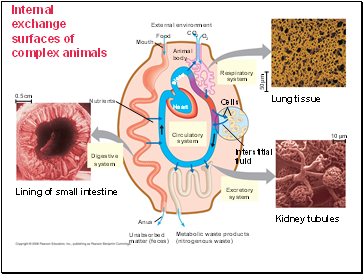

Internal exchange surfaces of complex animals

Internal exchange surfaces of complex animals

0.5 cm

Nutrients

Digestive

system

Lining of small intestine

Mouth

Food

External environment

Animal

body

CO2

O2

Circulatory

system

Heart

Respiratory

system

Cells

Interstitial
