Slide 1

Organic Chemistry

Organic Chemistry

Slide 2

Refinery and tank storage facilities, like this one in Texas, are needed to change the hydrocarbons of crude oil to many different petroleum products. The classes and properties of hydrocarbons form one topic of study in organic chemistry.

Refinery and tank storage facilities, like this one in Texas, are needed to change the hydrocarbons of crude oil to many different petroleum products. The classes and properties of hydrocarbons form one topic of study in organic chemistry.

Slide 3

Organic Compounds

Organic Compounds

Slide 4

An organic compound is one that has carbon as the principal element

An organic compound is one that has carbon as the principal element

An inorganic element is any compound that is not an organic compound.

Carbon is unique

It has 6 electrons in its outer shell arranges 1s22s2sp2

It has room for 4 bonds to 4 other atoms.

Organic compounds have specific geometry around the carbon to carbon bond.

If there are four atoms or groups around a carbon atom, it has a tetrahedral geometry.

Slide 5

(A)The carbon atom forms bonds in a tetrahedral structure with a bond angle of 109.5O. (B) Carbon-to-carbon bond angles are 109.5O, so a chain of carbon atoms makes a zigzag pattern. (C) The unbranched chain of carbon atoms is usually simplified in a way that looks like a straight chain, but it is actually a zigzag, as shown in (B).

(A)The carbon atom forms bonds in a tetrahedral structure with a bond angle of 109.5O. (B) Carbon-to-carbon bond angles are 109.5O, so a chain of carbon atoms makes a zigzag pattern. (C) The unbranched chain of carbon atoms is usually simplified in a way that looks like a straight chain, but it is actually a zigzag, as shown in (B).

Slide 6

Hydrocarbons

Hydrocarbons

Slide 7

Introduction

Introduction

A hydrocarbon is a compound consisting of only hydrogen and carbon.

The carbon to carbon can be single, double, or triple bonds.

The bonds are always nonpolar.

Alkanes are hydrocarbons with only single bonds.

Alkanes occur in what is called a homologous series.

Each successive compound differs from the one before it only by a CH2

Slide 8

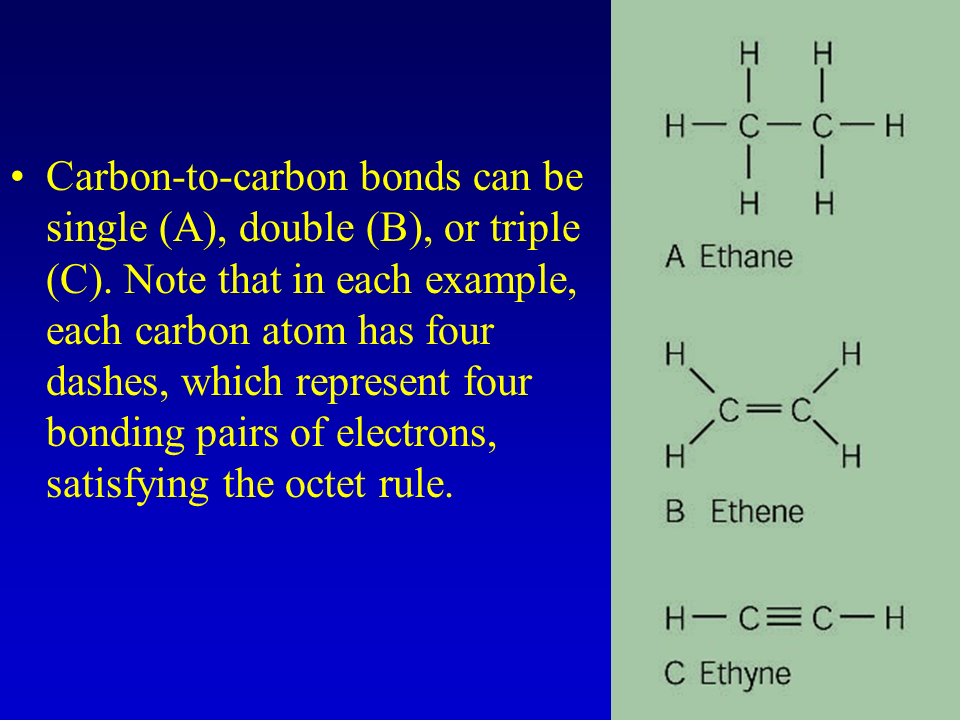

Carbon-to-carbon bonds can be single (A), double (B), or triple (C). Note that in each example, each carbon atom has four dashes, which represent four bonding pairs of electrons, satisfying the octet rule.

Carbon-to-carbon bonds can be single (A), double (B), or triple (C). Note that in each example, each carbon atom has four dashes, which represent four bonding pairs of electrons, satisfying the octet rule.

Slide 9

Carbon-to-carbon chains can be (A) straight, (B) branched, or (C) in a closed ring. (Some carbon bonds are drawn longer, but are actually the same length.)

Carbon-to-carbon chains can be (A) straight, (B) branched, or (C) in a closed ring. (Some carbon bonds are drawn longer, but are actually the same length.)

Slide 10

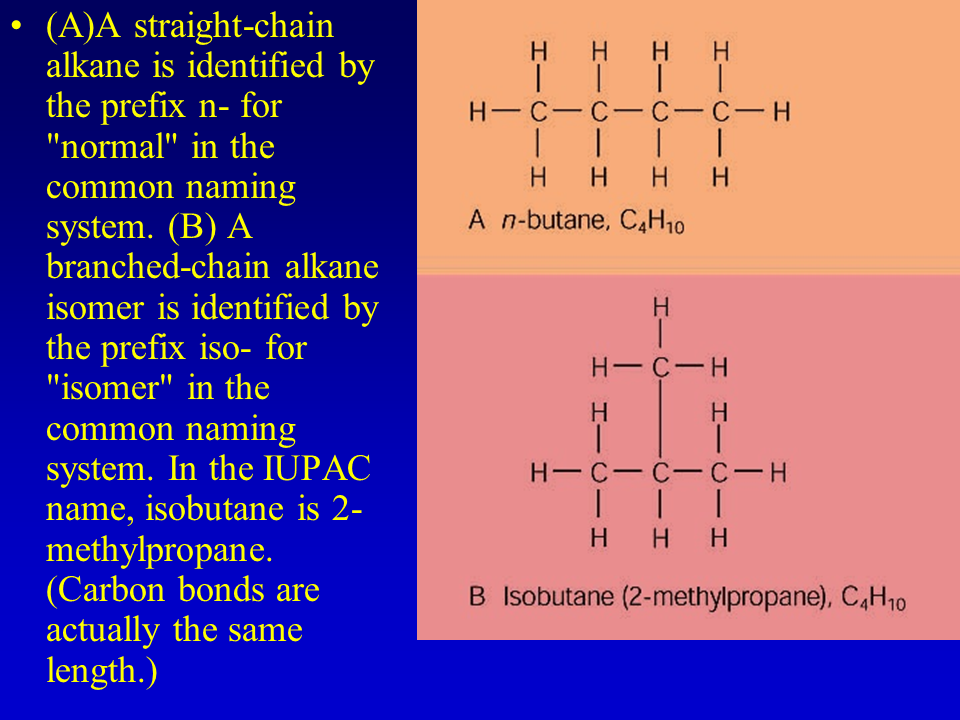

Compounds that have the same molecular formula, but different structures (arrangements of the atoms) are called isomers.

Compounds that have the same molecular formula, but different structures (arrangements of the atoms) are called isomers.

Naming alkanes

Identify the longest continuous chain.
