Slide 1

Telescopes

Telescopes

For all the colors of light

Slide 2

Similar to the telescope Galileo used to see the moons of Jupiter, the moon, and Venus

Similar to the telescope Galileo used to see the moons of Jupiter, the moon, and Venus

Uses Lenses!

Slide 3

Galileos telescopes

Galileos telescopes

Slide 4

150 foot long refracting telescope!!

150 foot long refracting telescope!!

Built by Johannes Hevelius

Slide 5

An old Refractor with guide scope

An old Refractor with guide scope

Slide 6

But lenses absorbed some of the faint light, caused the colors to focus at different points, and could only be made to a certain size.

But lenses absorbed some of the faint light, caused the colors to focus at different points, and could only be made to a certain size.

The largest is the 40 inch refracting telescope at Yerkes observatory. Glass bigger than that would not be able to hold itself up!

SO

Slide 7

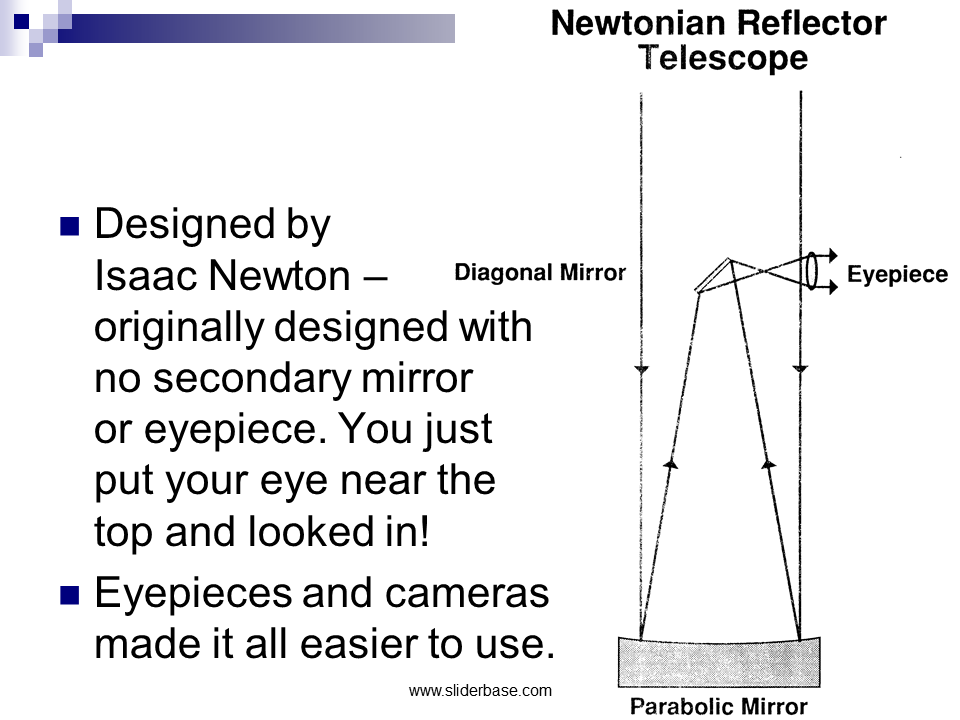

Designed by Isaac Newton  originally designed with no secondary mirror or eyepiece. You just put your eye near the top and looked in!

Designed by Isaac Newton originally designed with no secondary mirror or eyepiece. You just put your eye near the top and looked in!

Eyepieces and cameras made it all easier to use.

Slide 8

Early Newtonian telescope

Early Newtonian telescope

Slide 9

You could make a glass mirror a LOT bigger than 40 inches  and it didnt distort the light.

You could make a glass mirror a LOT bigger than 40 inches and it didnt distort the light.

A 5 meter mirror (the Hale telescope at Mt. Palomar) was the largest for a long time.

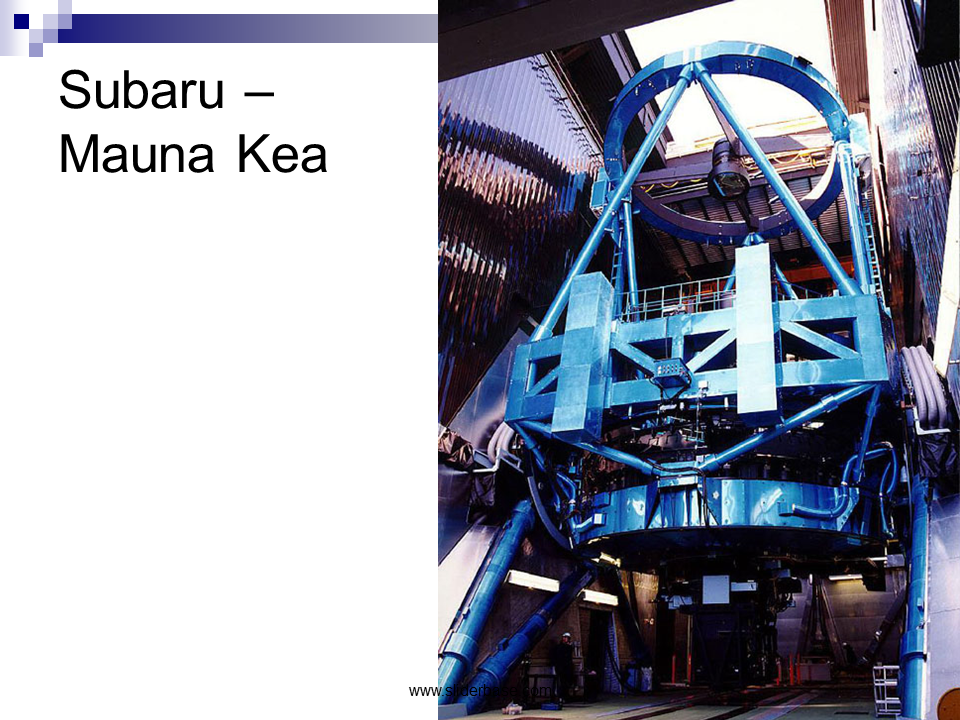

Currently, the largest Single Piece of glass telescope is 8 meters (Subaru and others)

Slide 10

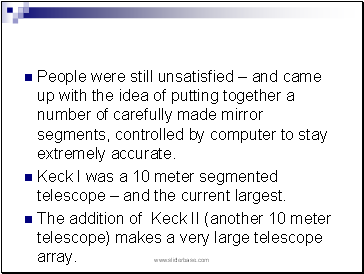

People were still unsatisfied  and came up with the idea of putting together a number of carefully made mirror segments, controlled by computer to stay extremely accurate.

People were still unsatisfied and came up with the idea of putting together a number of carefully made mirror segments, controlled by computer to stay extremely accurate.

Keck I was a 10 meter segmented telescope and the current largest.

The addition of Keck II (another 10 meter telescope) makes a very large telescope array.

Slide 11

The deeper the curve, the closer in the focal point.

The deeper the curve, the closer in the focal point.

Optical telescopes have farther focal points, Radio telescopes have shorter ones.

Slide 12

To make a shorter telescope, they put a secondary mirror in front to reflect it back through the main mirror.

To make a shorter telescope, they put a secondary mirror in front to reflect it back through the main mirror.

Most large telescopes use this design.

Slide 13
