Cross shore transport is a result of the water motions due to the waves and the undertow.

Here the sediment transport is perpendicular to the shore.

Important factors in determining the cross-shore transport of sand are

The ratio of wave height to wavelength

Physical parameters of the beach;

i.e., grain-size distribution, cohesiveness, beach

slope also play an important role.

Slide 31

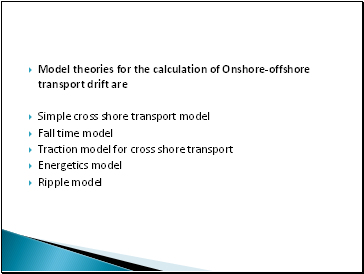

Model theories for the calculation of Onshore-offshore transport drift are

Model theories for the calculation of Onshore-offshore transport drift are

Simple cross shore transport model

Fall time model

Traction model for cross shore transport

Energetics model

Ripple model

Slide 32

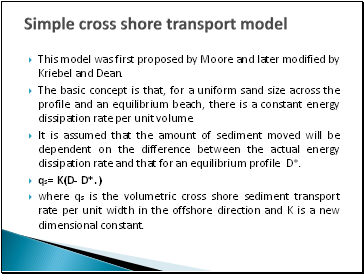

Simple cross shore transport model

Simple cross shore transport model

This model was first proposed by Moore and later modified by Kriebel and Dean.

The basic concept is that, for a uniform sand size across the profile and an equilibrium beach, there is a constant energy dissipation rate per unit volume.

It is assumed that the amount of sediment moved will be dependent on the difference between the actual energy dissipation rate and that for an equilibrium profile D*.

qs= K(D- D*.)

where qs is the volumetric cross shore sediment transport rate per unit width in the offshore direction and K is a new dimensional constant.

Slide 33

If D is greater than equilibrium value D* there is a greater turbulence level in the surf zone than that of for the equilibrium profile. If qs is positive then there will be a sediment transport in the offshore direction. On the other hand , for values of ᴆ less than equilibrium value, onshore transport will occur. The value D can be obtained as,

If D is greater than equilibrium value D* there is a greater turbulence level in the surf zone than that of for the equilibrium profile. If qs is positive then there will be a sediment transport in the offshore direction. On the other hand , for values of ᴆ less than equilibrium value, onshore transport will occur. The value D can be obtained as,

D = (5ρgk2(gh)0.5dh/dy)/16

which is dependent on the water depth and bottom slope, which has stronger effect.

Slide 34

Landforms of Littoral Drift

Landforms of Littoral Drift

Onshore offshore drift and longshore drift deposit and shape debris to produce a variety of landforms. A spit is an elongated deposit that extends from the land edge out to sea. It may be shaped to produce a distinctly curved end, as in Cape Cod. Another landform that attaches an island to the mainland is known as a tombolo, while deposits may also accumulate to create barriers such as a bay barrier.

Slide 35

Landforms of Littoral Drift

Slide 36

Excellent recent examples of seasonal cross-shore transport and the resultant change in beach profile, -Imperial Beach, La Jolla, and Carlsbad.

Excellent recent examples of seasonal cross-shore transport and the resultant change in beach profile, -Imperial Beach, La Jolla, and Carlsbad.

Slide 37
