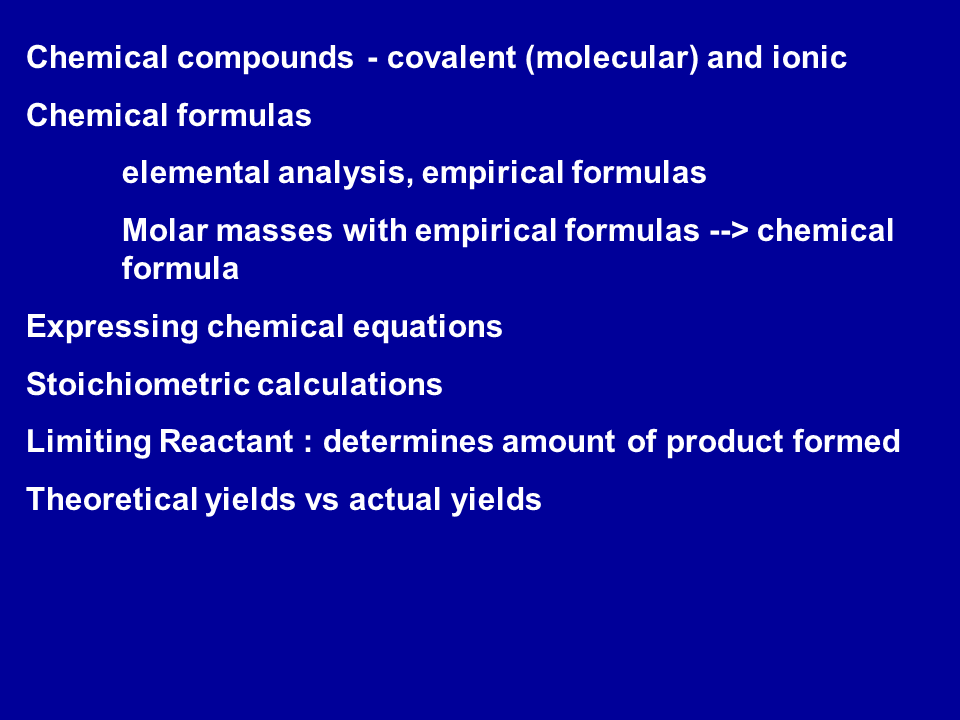

Slide 1

Chemical compounds - covalent (molecular) and ionic

Chemical compounds - covalent (molecular) and ionic

Chemical formulas

elemental analysis, empirical formulas

Molar masses with empirical formulas --> chemical formula

Expressing chemical equations

Stoichiometric calculations

Limiting Reactant : determines amount of product formed

Theoretical yields vs actual yields

Slide 2

Chemical Bonding

Chemical Bonding

A chemical bond results from strong electrostatic interactions between two atoms.

The nature of the atoms determines the kind of bond.

COVALENT bonds result from a strong interaction between NEUTRAL atoms

Each atom donates an electron resulting in a pair of electrons that are SHARED between the two atoms

Slide 3

For example, consider a hydrogen molecule, H2. When the two hydrogen, H, atoms are far apart from each other they do not feel any interaction.

For example, consider a hydrogen molecule, H2. When the two hydrogen, H, atoms are far apart from each other they do not feel any interaction.

As they come closer each feels the presence of the other.

The electron on each H atom occupies a volume that covers both H atoms and a COVALENT bond is formed.

Once the bond has been formed, the two electrons are shared by BOTH H atoms.

Slide 4

An electron density plot for the H2 molecule shows that the shared electrons occupy a volume equally distributed over BOTH H atoms.

An electron density plot for the H2 molecule shows that the shared electrons occupy a volume equally distributed over BOTH H atoms.

Slide 5

Potential energy (kJ/mol)

Potential energy (kJ/mol)

Separation (Å)

Slide 6

It is also possible that, as two atoms come closer, one electron is transferred to the other atom.

It is also possible that, as two atoms come closer, one electron is transferred to the other atom.

The atom that gives up an electron acquires a +1 charge and the other atom, which accepts the electron acquires a 1 charge.

The two atoms are attracted to each other through Coulombic interactions opposite charges attract resulting in an IONIC bond.

Animation

Slide 7

Potential energy (kJ/mol)

Potential energy (kJ/mol)

Separation (Å)

Slide 8

What factors determine if an atom forms a covalent or ionic bond with another atom?

What factors determine if an atom forms a covalent or ionic bond with another atom?

The number of electrons in an atom, particularly the number of the electrons furthest away from the nucleus determines the atoms reactivity and hence its tendency to form covalent or ionic bonds.

These outermost electrons are the ones that are more likely to feel the presence of other atoms and hence the ones involved in bonding i.e. in reactions.

Chemistry of an element depends almost entirely on the number of electrons, and hence its atomic number.
