Slide 1

Spectral Lines

Spectral Lines

Celestial Fingerprinting

Slide 2

Goals

Goals

From light we learn about

Composition

Motion

Slide 3

Continuum Spectra

Continuum Spectra

A Continuum Spectrum:

Light emitted across a continuous range of wavelengths.

A thermal spectrum is a continuum spectrum.

But what are these?

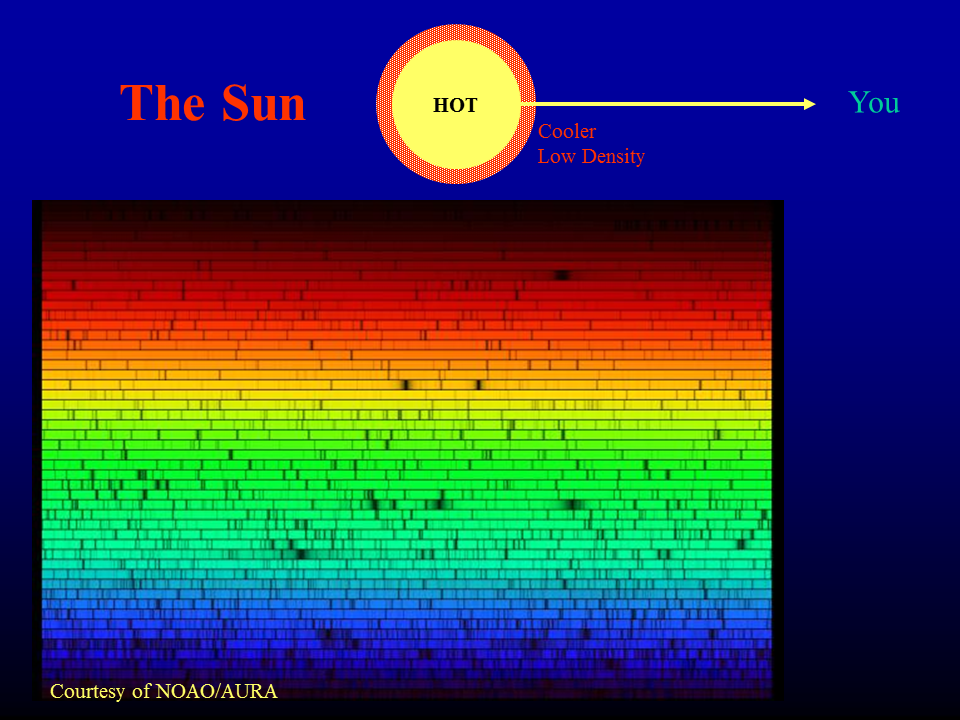

The Sun

Slide 4

A Spectrum

A Spectrum

A spectrum = the amount of light given off by an object at a range of wavelengths.

Slide 5

Continuum Concept Test

Continuum Concept Test

The sun shines on a cold airless asteroid made of black coal. What light from the asteroid do we detect?

No light at all.

Some reflected visible light.

Some reflected visible, plus emitted visible light.

Some reflected visible, plus emitted infrared light.

Some reflected visible, plus emitted visible and emitted infrared light.

Slide 6

Spectral Line formation?

Spectral Line formation?

Electron has different energy levels: Floors in a building.

Lowest is called the Ground State.

Higher states are Excited States.

Slide 7

Changing Levels

Changing Levels

If you add the RIGHT amount of energy to an atom, the electron will jump up energy floors.

If the electron drops down energy floors, the atom gives up the same amount energy.

From before, LIGHT IS ENERGY: E = hc/l

Slide 8

Kirchhoffs Laws

Kirchhoffs Laws

Light of all wavelengths shines on an atom.

Only light of an energy equal to the difference between floors will be absorbed and cause electrons to jump up in floors.

The rest of the light passes on by to our detector.

We see an absorption spectrum: light at all wavelengths minus those specific wavelengths.

Slide 9

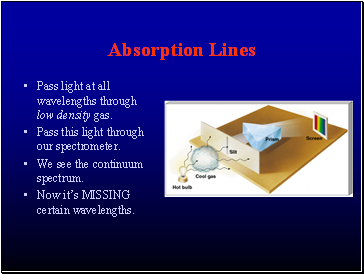

Absorption Lines

Absorption Lines

Pass light at all wavelengths through low density gas.

Pass this light through our spectrometer.

We see the continuum spectrum.

Now its MISSING certain wavelengths.

Slide 10

Absorption

Absorption

Dark hydrogen absorption lines appear against a continuous visual spectrum, the light in the spectrum absorbed by intervening hydrogen atoms

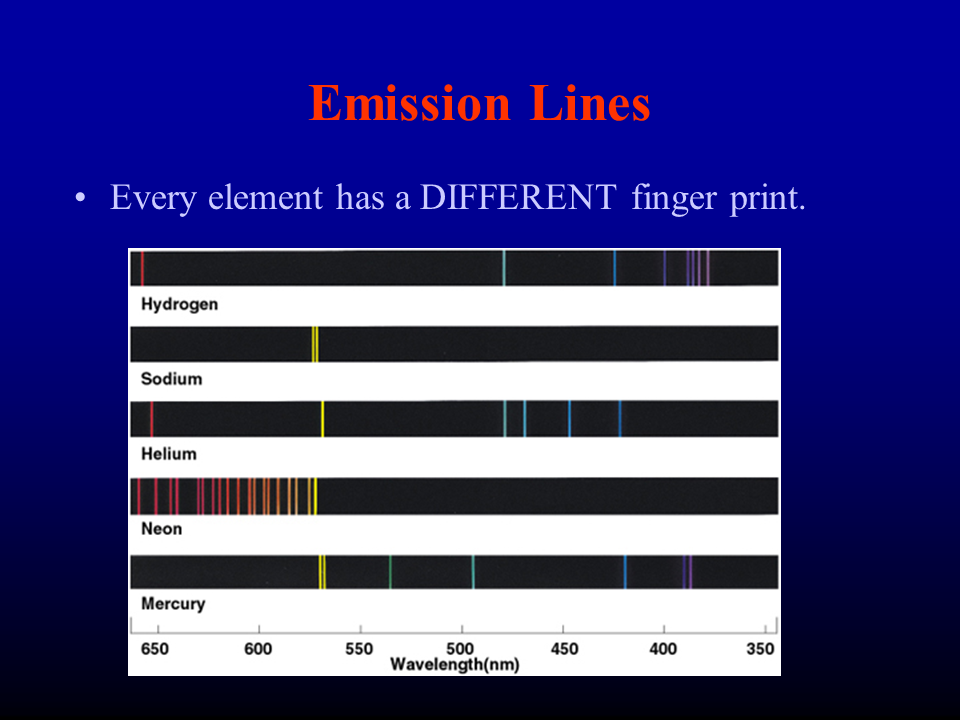

Compare with the emission spectrum of hydrogen.
