Slide 1

PHOTOSYNTHESIS

PHOTOSYNTHESIS

Slide 2

2

2

Photosynthesis

Anabolic (small molecules combined)

Endergonic (stores energy)

Carbon dioxide (CO2) requiring process that uses light energy (photons) and water (H2O) to produce organic macromolecules (glucose).

6CO2 + 6H2O  C6H12O6 + 6O2

Slide 3

3

3

Question:

Where does photosynthesis take place?

Slide 4

4

4

Plants

Autotrophs produce their own food (glucose)

Process called photosynthesis

Mainly occurs in the leaves:

a. stoma - pores

b. mesophyll cells

Slide 5

5

5

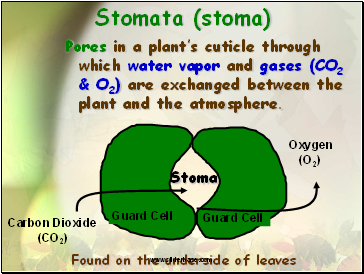

Stomata (stoma)

Pores in a plants cuticle through which water vapor and gases (CO2 & O2) are exchanged between the plant and the atmosphere.

Found on the underside of leaves

Stoma

Slide 6

6

6

Mesophyll Cell of Leaf

Photosynthesis occurs in these cells!

Slide 7

7

7

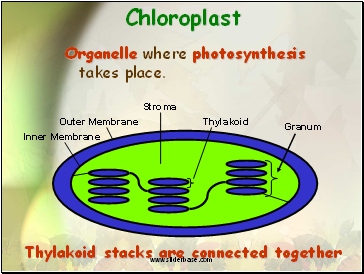

Chloroplast

Organelle where photosynthesis takes place.

Thylakoid stacks are connected together

Slide 8

8

8

Thylakoid

Grana make up the inner membrane

Slide 9

9

9

Question:

Why are plants green?

Slide 10

10

10

Chlorophyll Molecules

Located in the thylakoid membranes

Chlorophyll have Mg+ in the center

Chlorophyll pigments harvest energy (photons) by absorbing certain wavelengths (blue-420 nm and red-660 nm are most important)

Plants are green because the green wavelength is reflected, not absorbed.

Slide 11

11

11

Slide 12

12

12

Wavelength of Light (nm)

Slide 13

13

13

Absorption of Light by Chlorophyll

wavelength

Absorption

Chlorophyll absorbs blue-violet & red light best

Slide 14

14

14

Question:
