Slide 1

Fission and Fusion

Fission and Fusion

Slide 2

Energy and Mass

Energy and Mass

Nuclear changes occur with small but measurable losses of mass. The lost mass is called the mass defect, and is converted to energy according to Einsteins equation:

DE = Dmc2

Dm = mass defect

DE = change in energy

c = speed of light

Because c2 is so large, even small amounts of mass are converted to enormous amount of energy.

Slide 3

Nuclear Fission and Fusion

Nuclear Fission and Fusion

Fusion: Combining two light nuclei to form a heavier, more stable nucleus.

Fission: Splitting a heavy nucleus into two nuclei with smaller mass numbers.

Slide 4

Fission

Fission

A uranium-235 atom absorbs a neutron, and fissions into two new atoms (fission fragments), releasing three new neutrons and some binding energy.

One of those neutrons is absorbed by an atom of uranium-238, and does not continue the reaction. Another neutron is simply lost and does not collide with anything, also not continuing the reaction. However one neutron does collide with an atom of uranium-235, which then fissions and releases two neutrons and some binding energy.

Both of those neutrons collide with uranium-235 atoms, each of which fission and release between one and three neutrons, and so on.

Source: Wikimedia Commons

Slide 5

Fission Processes

Fission Processes

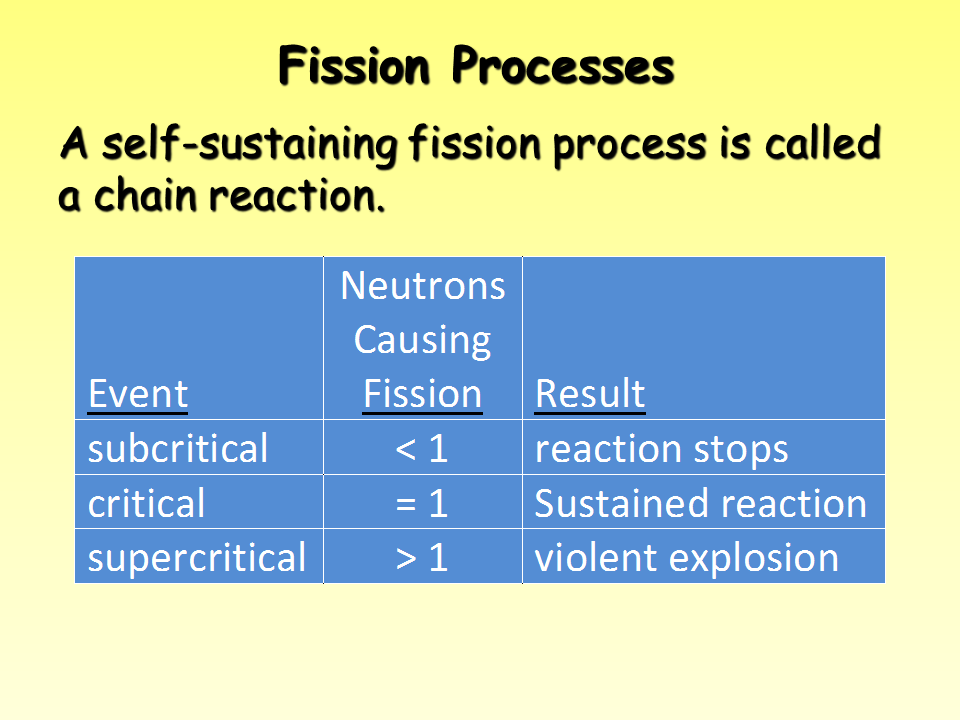

A self-sustaining fission process is called a chain reaction.

Slide 6

Critical Mass

Critical Mass

A sphere of fissile material is too small to allow the chain reaction to become self-sustaining as neutrons generated by fissions can too easily escape.

By increasing the mass of the sphere to a critical mass, the reaction can become self-sustaining

Surrounding the original sphere with a neutron reflector (such as tungsten carbide) increases the efficiency of the reactions and also allows the reaction to become self-sustaining.

Source: Wikipedia

Graphic: Wikimedia Commons

Slide 7

Fission Bomb Design

Fission Bomb Design

Fat Man

Little Boy

Slide 8

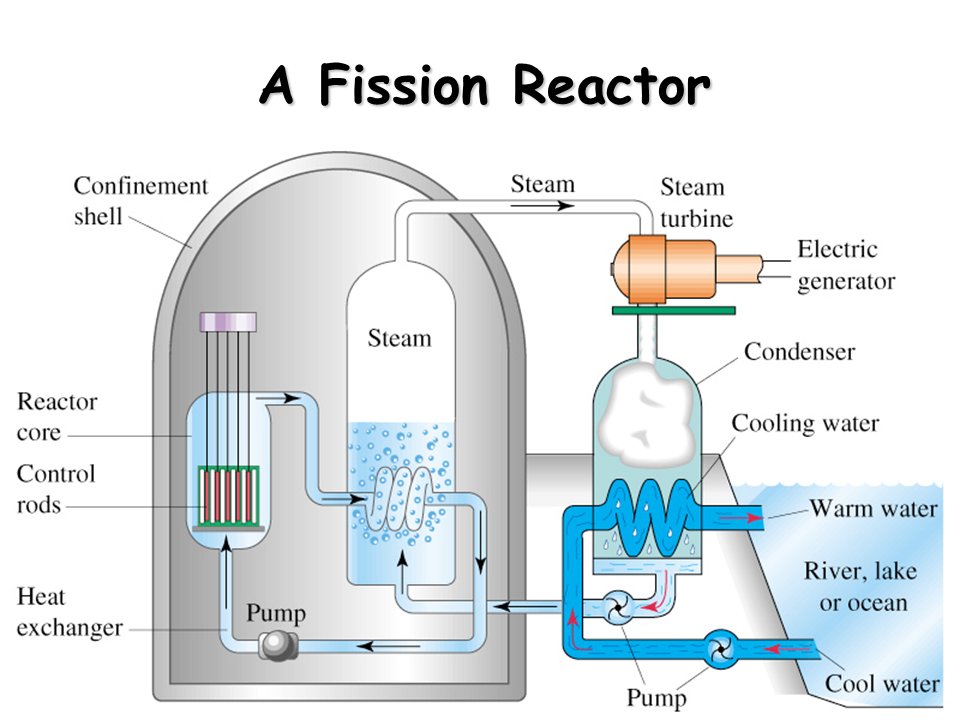

A Fission Reactor

A Fission Reactor

Slide 9

Fusion

Fusion

The deuterium-tritium fusion reaction

Slide 10

Stellar Fusion

Stellar Fusion
