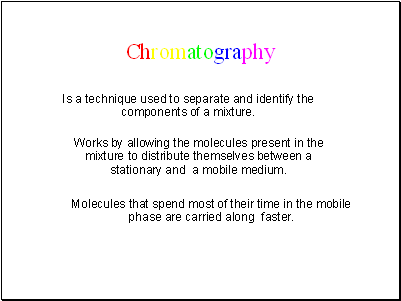

Chromatography

Chromatography

Is a technique used to separate and identify the components of a mixture.

Works by allowing the molecules present in the mixture to distribute themselves between a stationary and a mobile medium.

Molecules that spend most of their time in the mobile phase are carried along faster.

Slide 2

Gas Liquid Chromatography

Gas Liquid Chromatography

Here the mobile phase is an unreactive gas ( eg Nitrogen) flowing through a tube.

And the stationary phase is an involatile liquid held on particles of a solid support.

Slide 3

In the animation below the red molecules are more soluble in the liquid (or less volatile) than are the green molecules.

In the animation below the red molecules are more soluble in the liquid (or less volatile) than are the green molecules.

Slide 4

In practice the Column is contained in a thermostatic oven. (Why ?)

In practice the Column is contained in a thermostatic oven. (Why ?)

About 1μL of liquid is injected into one end of the column.

As each component reaches the other end it is detected and registered on a chart recorder.

The Retention Time is characteristic of a particular substance. (for the same column, temperature, gas flow etc.)

The area under each peak indicates the relative quantities.

Slide 5

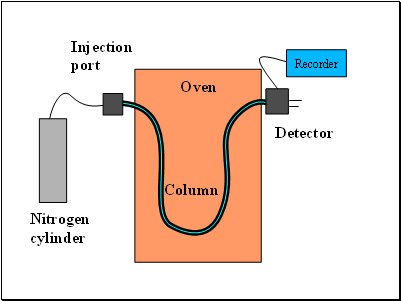

Oven

Oven

Detector

Injection

port

Nitrogen

cylinder

Column

Recorder

Slide 6

Gas Liquid Chromatography

Slide 7

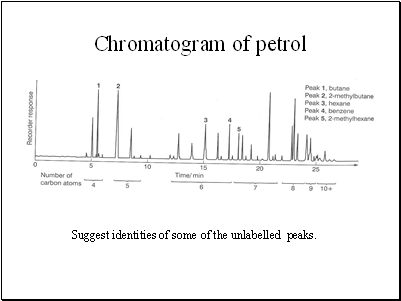

Chromatogram of petrol

Chromatogram of petrol

Suggest identities of some of the unlabelled peaks.

Slide 8

Thin Layer Chromatography

Thin Layer Chromatography

Here the mobile phase is a liquid

Flowing past a thin layer of powder on a solid support.

Substances that are less attracted to the solid or are more soluble in the liquid move faster.

And so move further up the plate by the time that the process has been stopped by taking the plate out of the liqiud. - larger Rf

Slide 9

Thin Layer Chromatography

Slide 10

Rf = distance moved by substance

Rf = distance moved by substance

distance moved by solvent front

For substances that are very soluble in the liquid Rf will be close to

For substances that are rather insoluble in the liquid Rf will be close to

1

0
