Plasma Membrane-Gateway to the Cell

Page
2

The cell membrane is made of 2 layers of phospholipids called the lipid bilayer

Slide 15

Solubility

Materials that are soluble in lipids can pass through the cell membrane easily

Slide 16

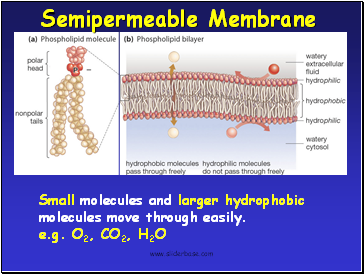

Semipermeable Membrane

Small molecules and larger hydrophobic molecules move through easily.

e.g. O2, CO2, H2O

Slide 17

Ions, hydrophilic molecules larger than water, and large molecules such as proteins do not move through the membrane on their own.

Semipermeable Membrane

Slide 18

Types of Transport Across Cell Membranes

Slide 19

Simple Diffusion

Requires NO energy

Molecules move from area of HIGH to LOW concentration

Slide 20

DIFFUSION

Diffusion is a PASSIVE process which means no energy is used to make the molecules move, they have a natural KINETIC ENERGY

Slide 21

Diffusion of Liquids

Slide 22

Diffusion through a Membrane

Cell membrane

Solute moves DOWN concentration gradient (HIGH to LOW)

Slide 23

Osmosis

Diffusion of water across a membrane

Moves from HIGH water potential (low solute) to LOW water potential (high solute)

Diffusion across a membrane

Semipermeable membrane

Slide 24

Diffusion of H2O Across A Membrane

High H2O potential Low solute concentration

Low H2O potential High solute concentration

Slide 25

Aquaporins

Water Channels

Protein pores used during OSMOSIS

WATER MOLECULES

Slide 26

Cell in Isotonic Solution

CELL

10% NaCL 90% H2O

10% NaCL

90% H2O

What is the direction of water movement?

The cell is at _.

equilibrium

ENVIRONMENT

NO NET MOVEMENT

Slide 27

Cell in Hypotonic Solution

CELL

10% NaCL 90% H2O

20% NaCL

80% H2O

What is the direction of water movement?
