DNA and Replication

Page
2

Helix

Most DNA has a right-hand twist with 10 base pairs in a complete turn

Left twisted DNA is called Z-DNA or southpaw DNA

Hot spots occur where right and left twisted DNA meet producing mutations

Slide 15

DNA

Stands for Deoxyribonucleic acid

Made up of subunits called nucleotides

Nucleotide made of:

1. Phosphate group

2. 5-carbon sugar

3. Nitrogenous base

Slide 16

DNA Nucleotide

O

Slide 17

Pentose Sugar

Carbons are numbered clockwise 1’ to 5’

Slide 18

DNA

Slide 19

Antiparallel Strands

One strand of DNA goes from 5’ to 3’ (sugars)

The other strand is opposite in direction going 3’ to 5’ (sugars)

Slide 20

Nitrogenous Bases

Double ring PURINES

Adenine (A)

Guanine (G)

Single ring PYRIMIDINES

Thymine (T)

Cytosine (C)

Slide 21

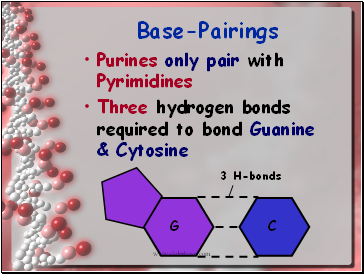

Base-Pairings

Purines only pair with Pyrimidines

Three hydrogen bonds required to bond Guanine & Cytosine

Slide 22

Two hydrogen bonds are required to bond Adenine & Thymine

Slide 23

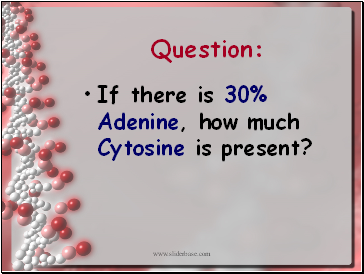

Question:

If there is 30% Adenine, how much Cytosine is present?

Slide 24

Answer:

There would be 20% Cytosine

Adenine (30%) = Thymine (30%)

Guanine (20%) = Cytosine (20%)

Therefore, 60% A-T and 40% C-G

Slide 25

DNA Replication

Slide 26

Replication Facts

DNA has to be copied before a cell divides

DNA is copied during the S or synthesis phase of interphase

New cells will need identical DNA strands

Slide 27

Synthesis Phase (S phase)

S phase during interphase of the cell cycle

Nucleus of eukaryotes

Slide 28

DNA Replication

Begins at Origins of Replication

Two strands open forming Replication Forks (Y-shaped region)
