Translation. mRNA used to make polypeptide chain (protein)

Slide 15

1.

1.

First the mRNA attaches itself to a ribosome (to the small subunit).

Six bases of the mRNA are exposed.

A complementary tRNA molecule with its attached amino acid (methionine) base pairs via its anticodon UAC with the AUG on the mRNA in the first position P.

Another tRNA base pairs with the other three mRNA bases in the ribosome at position A.

The enzyme peptidyl transferase forms a peptide bond between the two amino acids.

The first tRNA (without its amino acid) leaves the ribosome.

Slide 16

Translation 2

Translation 2

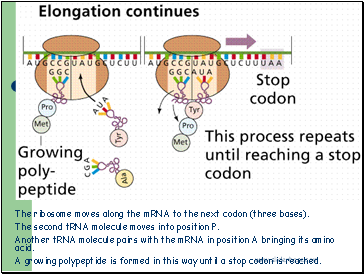

The ribosome moves along the mRNA to the next codon (three bases).

The second tRNA molecule moves into position P.

Another tRNA molecule pairs with the mRNA in position A bringing its amino acid.

A growing polypeptide is formed in this way until a stop codon is reached.

Slide 17

End of Translation

End of Translation

A stop codon on the mRNA is reached and this signals the ribosome to leave the mRNA. A newly synthesised protein is now complete!

Slide 18

Translation mRNA to Polypeptide

Translation mRNA to Polypeptide

Slide 19

End of Translation

Slide 20

End of Translation

Slide 21

Rough endoplasmic reticulum

Rough endoplasmic reticulum

Slide 22

End of Translation

Slide 23

One ribosome from the RER

One ribosome from the RER

Slide 24

End of Translation

Slide 25

A ribosome

A ribosome
