Slide 39

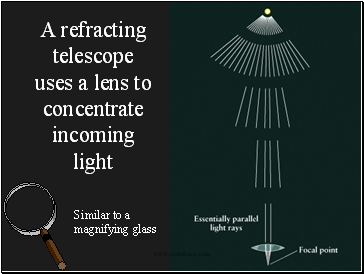

A refracting telescope uses a lens to concentrate incoming light

A refracting telescope uses a lens to concentrate incoming light

Slide 40

Light and Telescopes

Slide 41

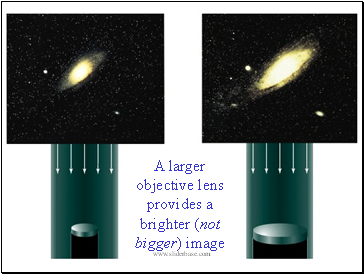

A larger objective lens provides a brighter (not bigger) image

A larger objective lens provides a brighter (not bigger) image

Slide 42

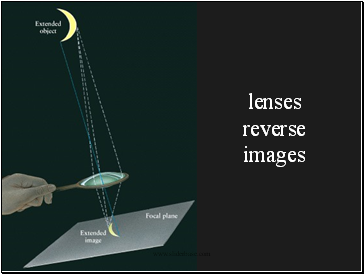

lenses reverse images

lenses reverse images

Slide 43

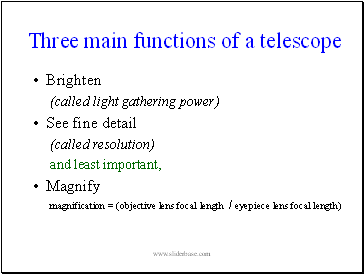

Three main functions of a telescope

Three main functions of a telescope

Brighten

(called light gathering power)

See fine detail

(called resolution)

and least important,

Magnify

magnification = (objective lens focal length / eyepiece lens focal length)

Slide 44

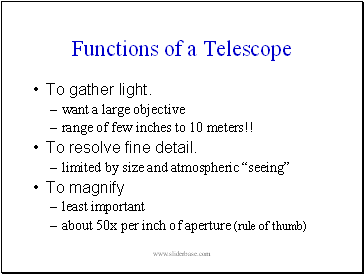

Functions of a Telescope

Functions of a Telescope

To gather light.

want a large objective

range of few inches to 10 meters!!

To resolve fine detail.

limited by size and atmospheric ďseeingĒ

To magnify

least important

about 50x per inch of aperture (rule of thumb)

Slide 45

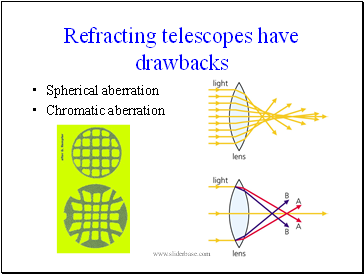

Refracting telescopes have drawbacks

Refracting telescopes have drawbacks

Spherical aberration

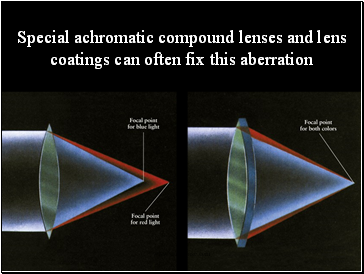

Chromatic aberration

Slide 46

Light and Telescopes

Slide 47

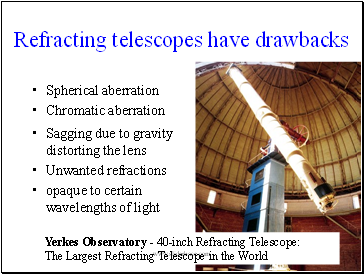

Refracting telescopes have drawbacks

Refracting telescopes have drawbacks

Spherical aberration

Chromatic aberration

Sagging due to gravity distorting the lens

Unwanted refractions

opaque to certain wavelengths of light

Yerkes Observatory - 40-inch Refracting Telescope: The Largest Refracting Telescope in the World

Slide 48

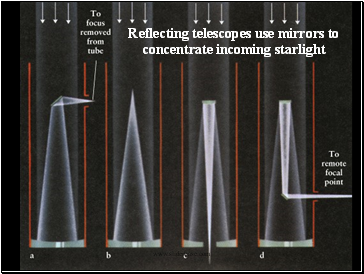

Reflecting telescopes use mirrors to concentrate incoming starlight

Reflecting telescopes use mirrors to concentrate incoming starlight

Slide 49

Light and Telescopes

Slide 50

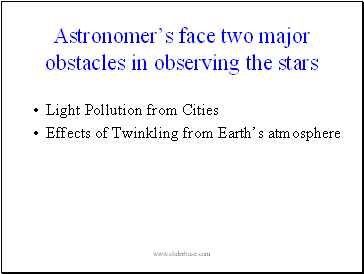

Astronomerís face two major obstacles in observing the stars

Astronomerís face two major obstacles in observing the stars

Light Pollution from Cities

Effects of Twinkling from Earthís atmosphere

Slide 51

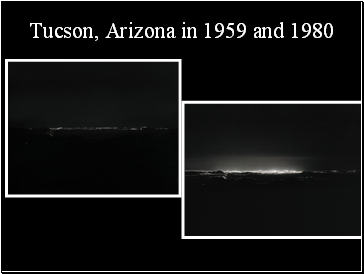

Tucson, Arizona in 1959 and 1980

Tucson, Arizona in 1959 and 1980

Slide 52

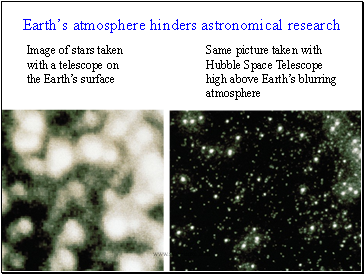

Earthís atmosphere hinders astronomical research

Earthís atmosphere hinders astronomical research

Slide 53

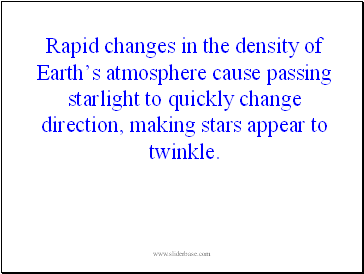

Rapid changes in the density of Earthís atmosphere cause passing starlight to quickly change direction, making stars appear to twinkle.

Rapid changes in the density of Earthís atmosphere cause passing starlight to quickly change direction, making stars appear to twinkle.
