Cell membrane transport

Page
3

VERY Low conc. of water molecules. High water potential.

Sugar molecule

DILUTE SOLUTION

CONCENTRATED SOLUTION

Slide 24

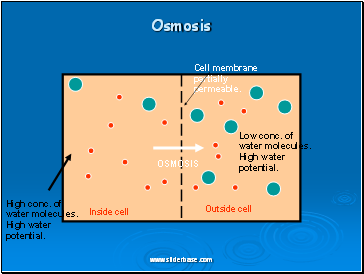

Osmosis

Cell membrane partially permeable.

Inside cell

Outside cell

High conc. of water molecules. High water potential.

Low conc. of water molecules. High water potential.

OSMOSIS

Slide 25

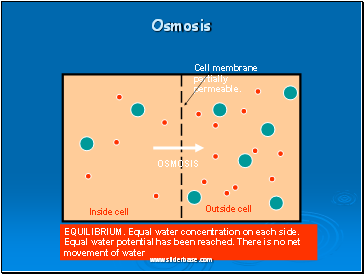

Osmosis

Cell membrane partially permeable.

Inside cell

Outside cell

OSMOSIS

EQUILIBRIUM. Equal water concentration on each side. Equal water potential has been reached. There is no net movement of water

Slide 26

Slide 27

Slide 28

Slide 29

Slide 30

Slide 31

Slide 32

Slide 33

Slide 34

Slide 35

Slide 36

Slide 37

Exocytosis

The opposite of endocytosis is exocytosis. Large molecules that are manufactured in the cell are released through the cell membrane.

Slide 38

Slide 39

Slide 40

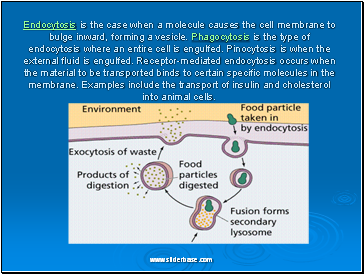

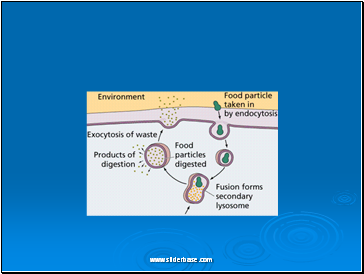

Endocytosis is the case when a molecule causes the cell membrane to bulge inward, forming a vesicle. Phagocytosis is the type of endocytosis where an entire cell is engulfed. Pinocytosis is when the external fluid is engulfed. Receptor-mediated endocytosis occurs when the material to be transported binds to certain specific molecules in the membrane. Examples include the transport of insulin and cholesterol into animal cells.

Slide 41
