Cataracts

Some studies show effects of teratoginicity and carcinogenicity.

Slide 58

RADIATION CONTROLS

RADIATION CONTROLS

A. Basic Control Methods for External Radiation

Decrease Time

Increase Distance

Increase Shielding

Slide 59

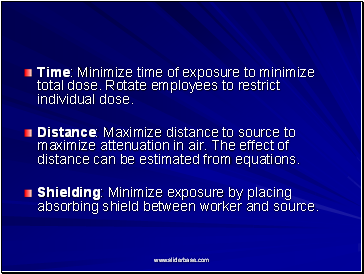

Time: Minimize time of exposure to minimize total dose. Rotate employees to restrict individual dose.

Time: Minimize time of exposure to minimize total dose. Rotate employees to restrict individual dose.

Distance: Maximize distance to source to maximize attenuation in air. The effect of distance can be estimated from equations.

Shielding: Minimize exposure by placing absorbing shield between worker and source.

Slide 60

Radiation

Slide 61

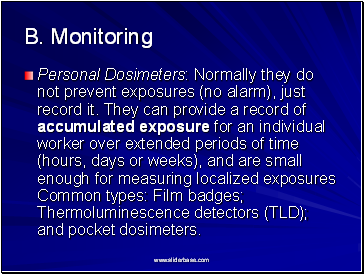

B. Monitoring

B. Monitoring

Personal Dosimeters: Normally they do not prevent exposures (no alarm), just record it. They can provide a record of accumulated exposure for an individual worker over extended periods of time (hours, days or weeks), and are small enough for measuring localized exposures Common types: Film badges; Thermoluminescence detectors (TLD); and pocket dosimeters.

Slide 62

Radiation

Slide 63

Radiation

Slide 64

Radiation

Slide 65

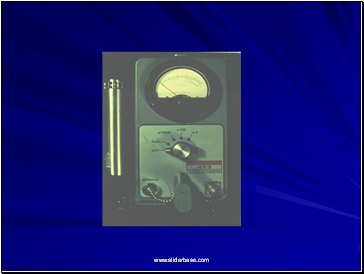

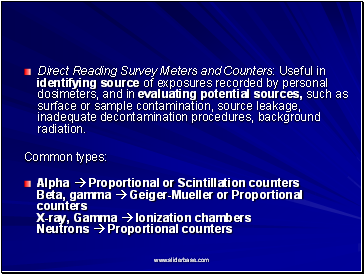

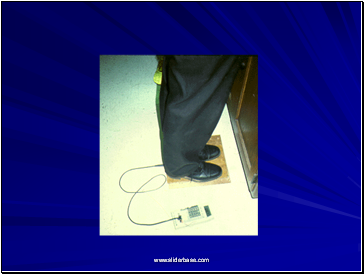

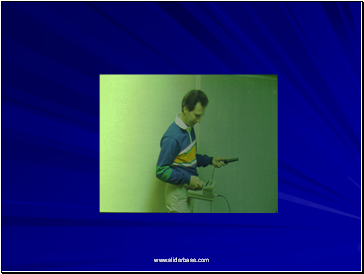

Direct Reading Survey Meters and Counters: Useful in identifying source of exposures recorded by personal dosimeters, and in evaluating potential sources, such as surface or sample contamination, source leakage, inadequate decontamination procedures, background radiation.

Direct Reading Survey Meters and Counters: Useful in identifying source of exposures recorded by personal dosimeters, and in evaluating potential sources, such as surface or sample contamination, source leakage, inadequate decontamination procedures, background radiation.

Common types:

Alpha  Proportional or Scintillation counters Beta, gamma  Geiger-Mueller or Proportional counters X-ray, Gamma  Ionization chambers Neutrons  Proportional counters

Slide 66

Radiation

Slide 67

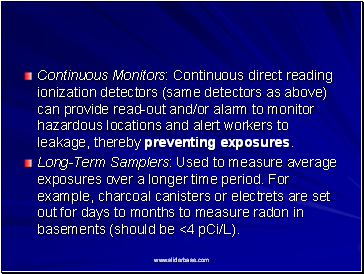

Continuous Monitors: Continuous direct reading ionization detectors (same detectors as above) can provide read-out and/or alarm to monitor hazardous locations and alert workers to leakage, thereby preventing exposures.

Continuous Monitors: Continuous direct reading ionization detectors (same detectors as above) can provide read-out and/or alarm to monitor hazardous locations and alert workers to leakage, thereby preventing exposures.

Long-Term Samplers: Used to measure average exposures over a longer time period. For example, charcoal canisters or electrets are set out for days to months to measure radon in basements (should be <4 pCi/L).

Slide 68

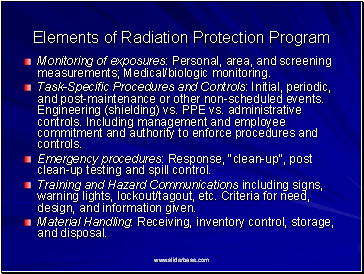

Elements of Radiation Protection Program

Elements of Radiation Protection Program
