Slide 26

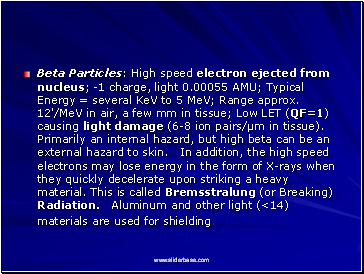

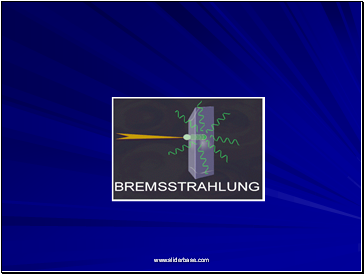

Beta Particles: High speed electron ejected from nucleus; -1 charge, light 0.00055 AMU; Typical Energy = several KeV to 5 MeV; Range approx. 12'/MeV in air, a few mm in tissue; Low LET (QF=1) causing light damage (6-8 ion pairs/m in tissue). Primarily an internal hazard, but high beta can be an external hazard to skin. In addition, the high speed electrons may lose energy in the form of X-rays when they quickly decelerate upon striking a heavy material. This is called Bremsstralung (or Breaking) Radiation. Aluminum and other light (<14) materials are used for shielding.

Beta Particles: High speed electron ejected from nucleus; -1 charge, light 0.00055 AMU; Typical Energy = several KeV to 5 MeV; Range approx. 12'/MeV in air, a few mm in tissue; Low LET (QF=1) causing light damage (6-8 ion pairs/m in tissue). Primarily an internal hazard, but high beta can be an external hazard to skin. In addition, the high speed electrons may lose energy in the form of X-rays when they quickly decelerate upon striking a heavy material. This is called Bremsstralung (or Breaking) Radiation. Aluminum and other light (<14) materials are used for shielding.

Slide 27

Radiation

Slide 28

Gamma Rays

Gamma Rays

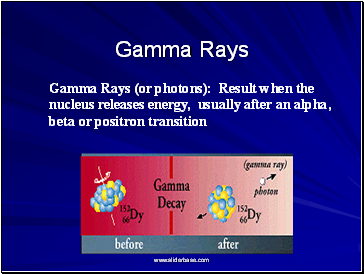

Gamma Rays (or photons): Result when the nucleus releases energy, usually after an alpha, beta or positron transition

Slide 29

X-Rays

X-Rays

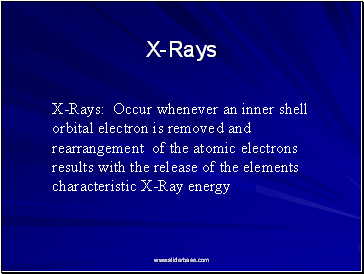

X-Rays: Occur whenever an inner shell orbital electron is removed and rearrangement of the atomic electrons results with the release of the elements characteristic X-Ray energy

Slide 30

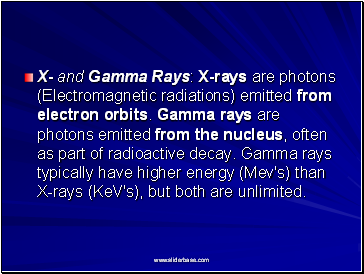

X- and Gamma Rays: X-rays are photons (Electromagnetic radiations) emitted from electron orbits. Gamma rays are photons emitted from the nucleus, often as part of radioactive decay. Gamma rays typically have higher energy (Mev's) than X-rays (KeV's), but both are unlimited.

X- and Gamma Rays: X-rays are photons (Electromagnetic radiations) emitted from electron orbits. Gamma rays are photons emitted from the nucleus, often as part of radioactive decay. Gamma rays typically have higher energy (Mev's) than X-rays (KeV's), but both are unlimited.

Slide 31

Neutrons

Neutrons

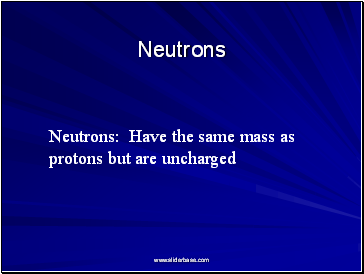

Neutrons: Have the same mass as protons but are uncharged

Slide 32

Neutrons

Slide 33

Neutrons

Slide 34

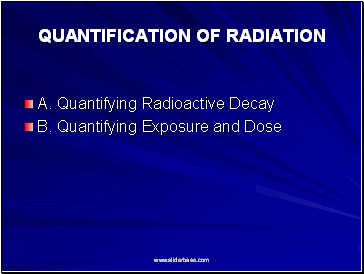

QUANTIFICATION OF RADIATION

QUANTIFICATION OF RADIATION

A. Quantifying Radioactive Decay

B. Quantifying Exposure and Dose

Slide 35

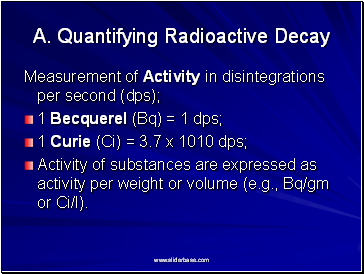

A. Quantifying Radioactive Decay

A. Quantifying Radioactive Decay

Measurement of Activity in disintegrations per second (dps);

1 Becquerel (Bq) = 1 dps;

1 Curie (Ci) = 3.7 x 1010 dps;

Activity of substances are expressed as activity per weight or volume (e.g., Bq/gm or Ci/l).

Slide 36

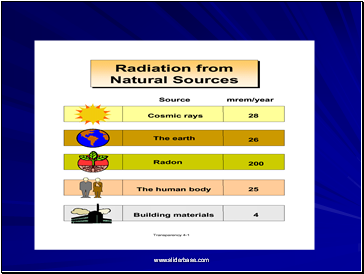

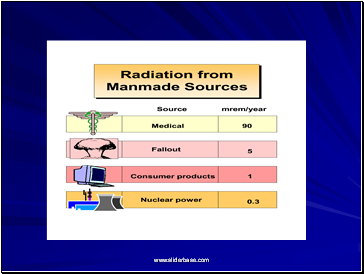

B. Quantifying Exposure and Dose

B. Quantifying Exposure and Dose

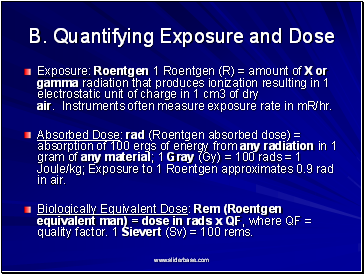

Exposure: Roentgen 1 Roentgen (R) = amount of X or gamma radiation that produces ionization resulting in 1 electrostatic unit of charge in 1 cm3 of dry air. Instruments often measure exposure rate in mR/hr.
