Slide 1

Bohr Models and Lewis Dot Diagrams

Bohr Models and Lewis Dot Diagrams

Science 10

Slide 2

Niels Bohr

Niels Bohr

Slide 3

Bohr Models…

Bohr Models…

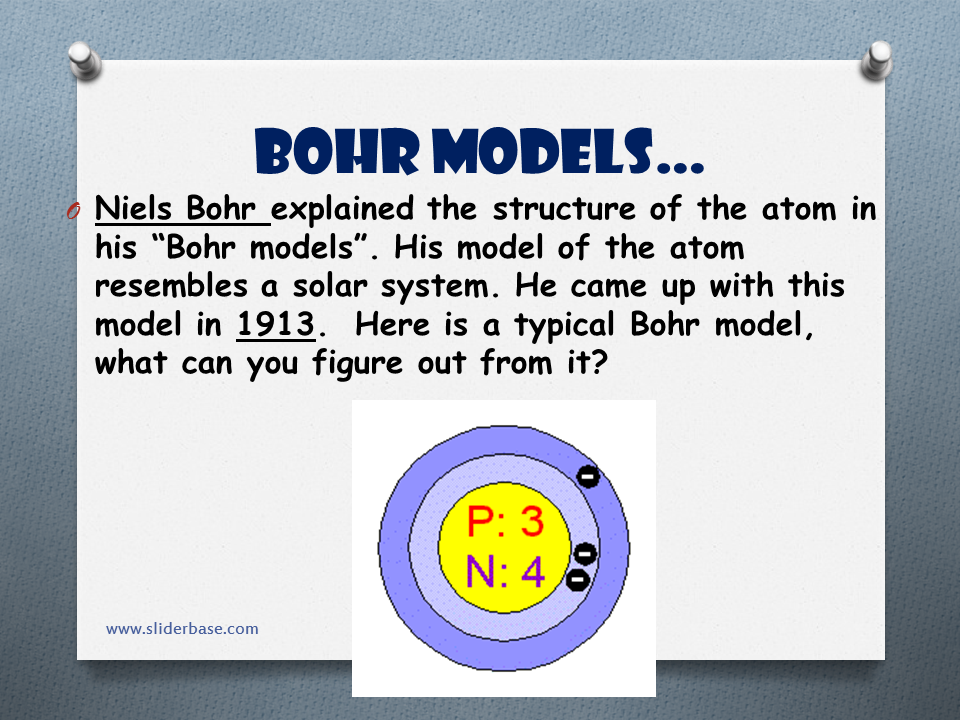

Niels Bohr explained the structure of the atom in his “Bohr models”. His model of the atom resembles a solar system. He came up with this model in 1913. Here is a typical Bohr model, what can you figure out from it?

Slide 4

Bohr models show the nucleus in the center with the # of Protons (p) and Neutrons (n) in it

Bohr models show the nucleus in the center with the # of Protons (p) and Neutrons (n) in it

Around the nucleus, it shows

the electrons in orbits or shells

Each orbit/shell can only hold a

certain # of electrons and then

it is full.

Slide 5

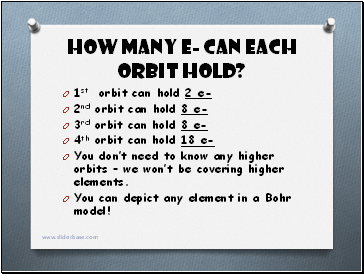

How many e- can each orbit hold?

How many e- can each orbit hold?

1st orbit can hold 2 e-

2nd orbit can hold 8 e-

3rd orbit can hold 8 e-

4th orbit can hold 18 e-

You don’t need to know any higher orbits – we won’t be covering higher elements.

You can depict any element in a Bohr model!

Slide 6

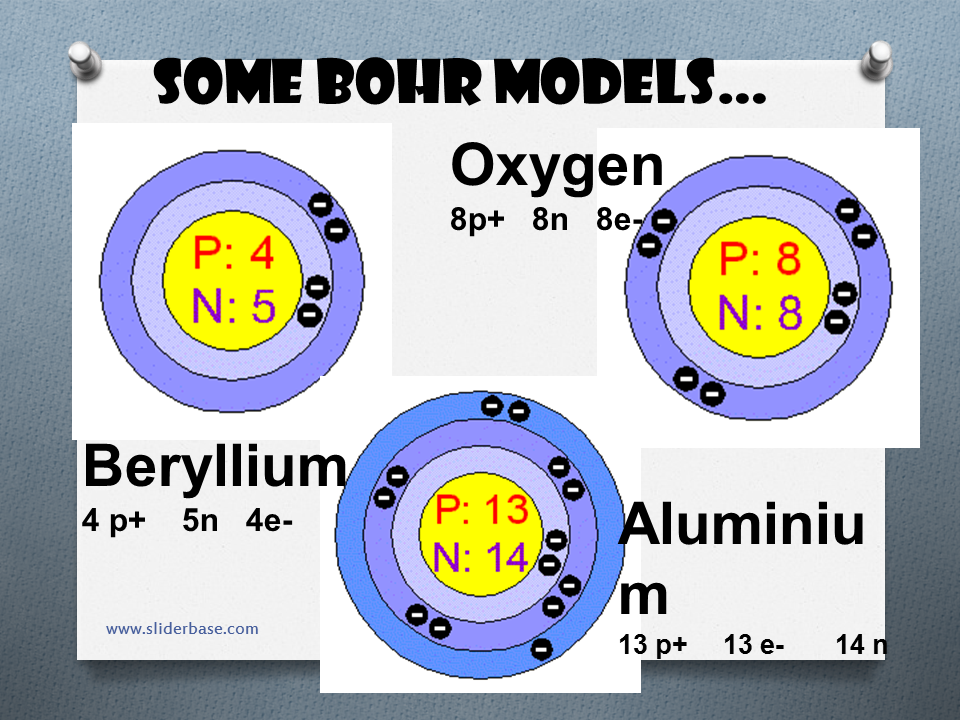

Some Bohr models…

Some Bohr models…

Beryllium

4 p+ 5n 4e-

Oxygen

8p+ 8n 8e-

Aluminium

13 p+ 13 e- 14 n

Slide 7

So how do we draw a Bohr model of… say…Sodium?

So how do we draw a Bohr model of… say…Sodium?

Start with a nucleus, and put in how many protons and neutrons are in sodium (look at your periodic table)

Next place some orbits around it

P:11

N:12

P:11

N:12

Slide 8

Next figure out how many e- are in sodium (look at your periodic table). Place them in dots in the orbits

Next figure out how many e- are in sodium (look at your periodic table). Place them in dots in the orbits

P:11

N:12

Remember!!

2 max in 1st orbit

8 max in 2nd orbit

8 max in 3rd orbit

18 max in 4th orbit

Sodium has 11 electrons !!

they are the same as the protons

Slide 9

Draw a Bohr Model for an Argon atom

Draw a Bohr Model for an Argon atom

How many neutrons and protons does it have?

How many electrons does it have?

Slide 10

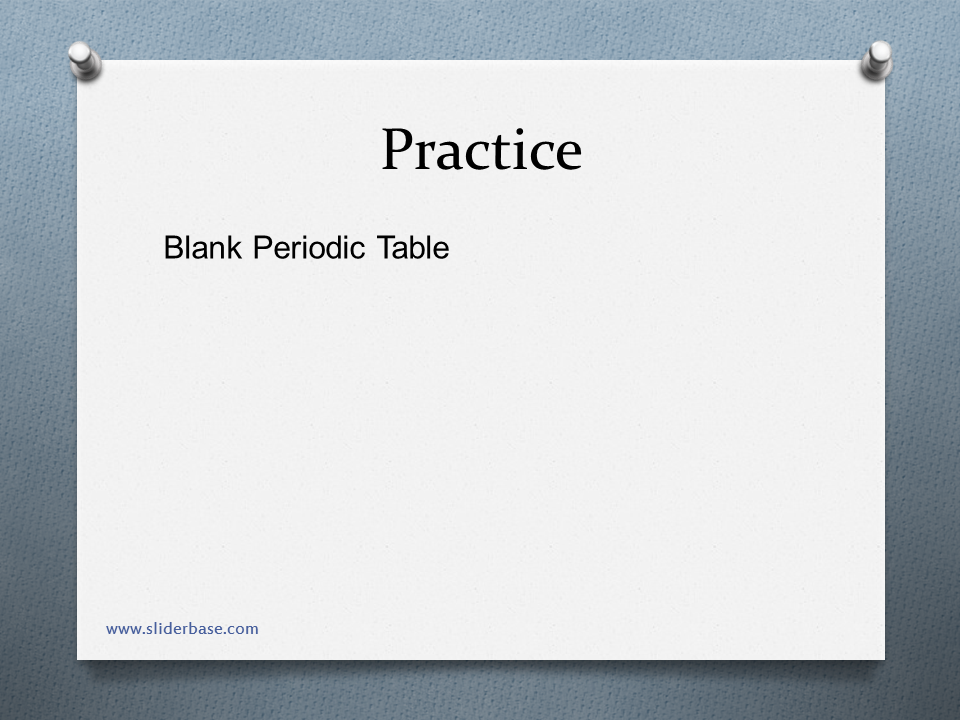

Practice

Practice

Blank Periodic Table

Slide 11

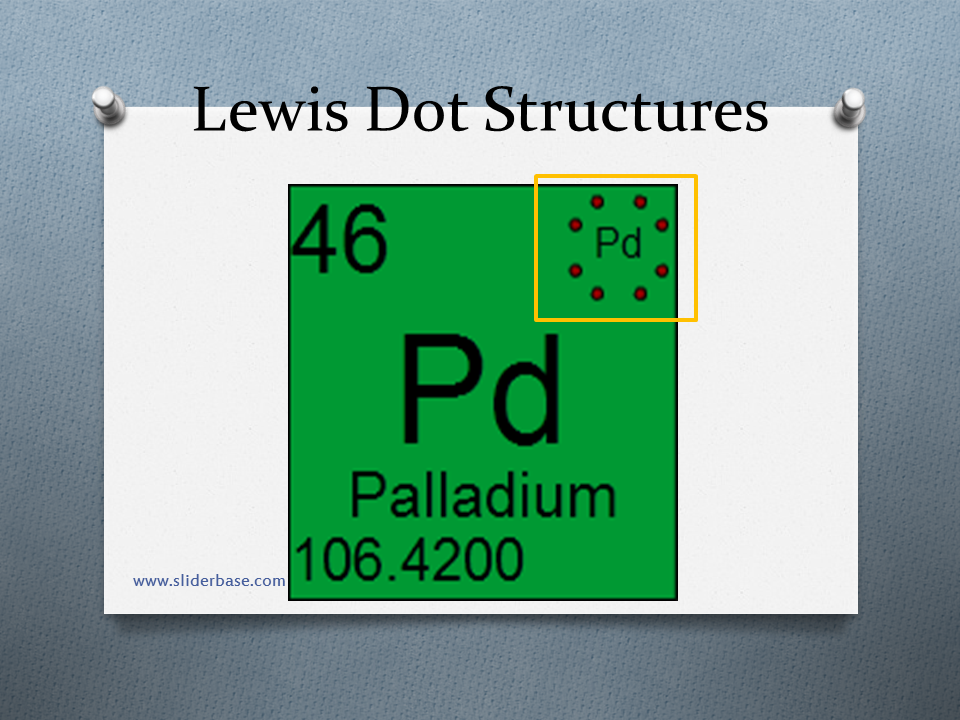

Valence Electrons

Valence Electrons

Valence electrons and stability

Which group on the periodic table, do you notice, always has all its valence electron shell full? _

Every element wants to have a full outer shell – because then it is and never has to react.
