On the other hand, CsCl density-gradient analysis of DNA from eukaryotes usually reveals the presence of one large band of DNA (usually called “Mainband” DNA) and one to several small bands.

These small bands are referred to as “Satellite DNAs”.

For e.g., in Drosophila virilis, contain three distinct satellite DNAs.

Slide 22

Prokaryotic and Eukaryotic Chromosomes

Prokaryotic and Eukaryotic Chromosomes

Slide 23

Not only the genomes of eukaryotes are more complex than prokaryotes, but the DNA of eukaryotic cell is also organized differently from that of prokaryotic cells.

Not only the genomes of eukaryotes are more complex than prokaryotes, but the DNA of eukaryotic cell is also organized differently from that of prokaryotic cells.

The genomes of prokaryotes are contained in single chromosomes, which are usually circular DNA molecules.

In contrast, the genomes of eukaryotes are composed of multiple chromosomes, each containing a linear molecular of DNA.

Slide 24

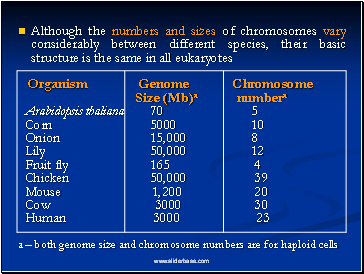

Although the numbers and sizes of chromosomes vary considerably between different species, their basic structure is the same in all eukaryotes

Although the numbers and sizes of chromosomes vary considerably between different species, their basic structure is the same in all eukaryotes

Organism Genome Chromosome

Size (Mb)a numbera

Arabidopsis thaliana 70 5

Corn 5000 10

Onion 15,000 8

Lily 50,000 12

Fruit fly 165 4

Chicken 50,000 39

Mouse 1,200 20

Cow 3000 30

Human 3000 23

a – both genome size and chromosome numbers are for haploid cells

Slide 25

The DNA of eukaryotic cell is tightly bound to small basic proteins (histones) that package the DNA in an orderly way in the cell nucleus.

The DNA of eukaryotic cell is tightly bound to small basic proteins (histones) that package the DNA in an orderly way in the cell nucleus.

This task is substantial (necessary), given the DNA content of most eukaryotes

For e.g., the total extended length of DNA in a human cell is nearly 2 m, but this must be fit into a nucleus with a diameter of only 5 to 10µm.

Although DNA packaging is also a problem in bacteria, the mechanism by which prokaryotic DNA are packaged in the cell appears distinct from that eukaryotes and is not well understood.

Slide 26

Prokaryotic chromosome

Prokaryotic chromosome

The prokaryotes usually have only one chromosome, and it bears little morphological resemblance to eukaryotic chromosomes.

Among prokaryotes there is considerable variation in genome length bearing genes.

The genome length is smallest in RNA viruses

In this case, the organism is provided with only a few genes in its chromosome.

The number of gene may be as high as 150 in some larger bacteriophage genome.

Slide 27

In E.coli, about 3000 to 4000 genes are organized into its one circular chromosome.

In E.coli, about 3000 to 4000 genes are organized into its one circular chromosome.

The chromosome exists as a highly folded and coiled structure dispersed throughout the cell.
